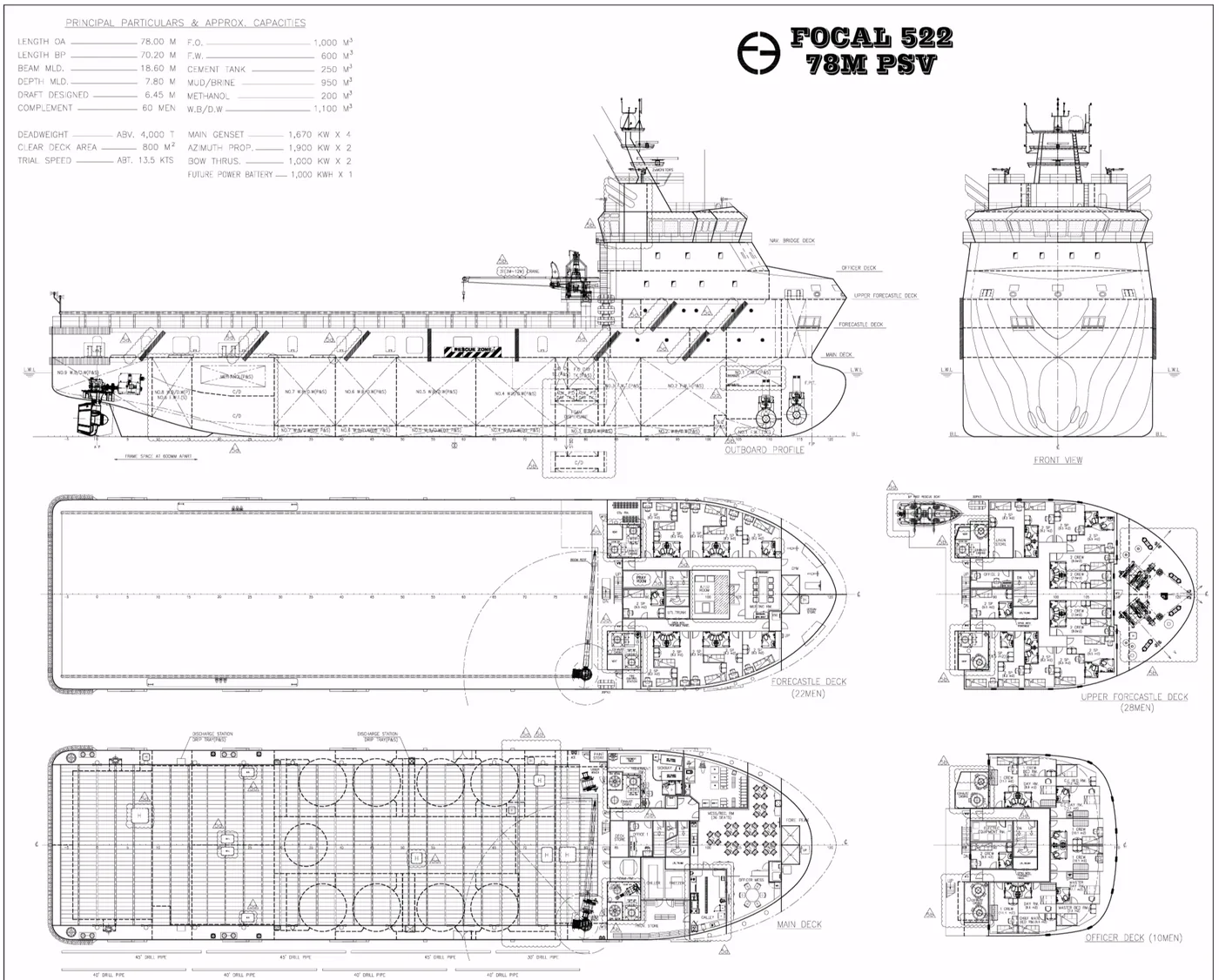

General arrangement drawing — vessel profile and deck plans; not a photograph

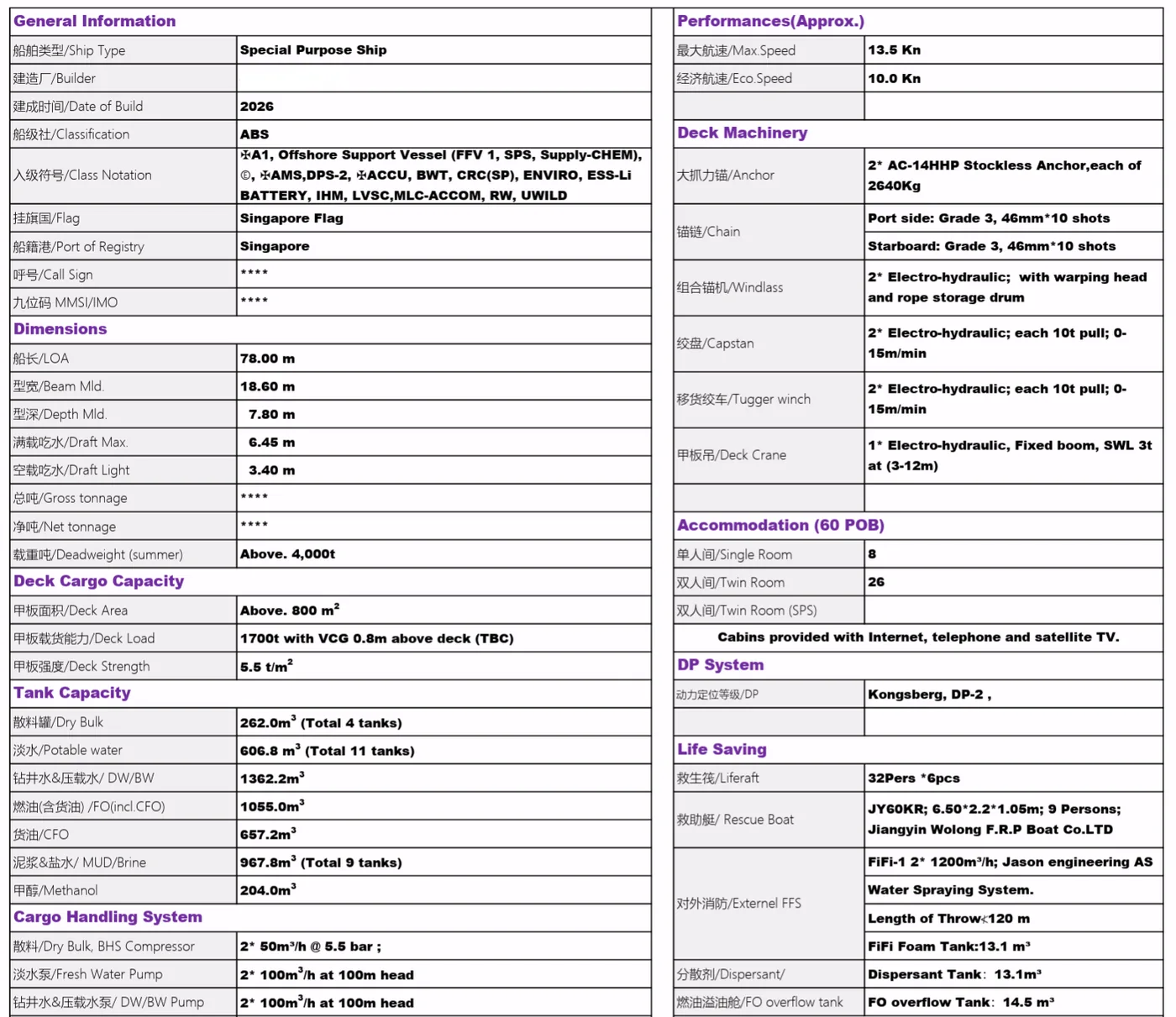

Technical brochure — specifications and machinery particulars; not a photograph
Ocean7 Listing 0044 · Offshore / PSV / AHTS
78m PSV Newbuild — 2026 Delivery
For Sale · Specifications and commercial availability subject to seller reconfirmation
Catalogue record last reviewed: 2026-09-16
Technical drawing — not a photograph
Principal Particulars
- Ship Type
- Special Purpose Ship / Offshore Support Vessel
- Classification
- ABS
- Class Notation
- A1, Offshore Support Vessel (FFV1, SPS, Supply-CHEM), ☆AMS, DPS-2, ☆ACCU, BWT, CRC(SP), ENVIRO, ESS-LI BATTERY, IHM, LVSC, MLC-ACCOM, RW, UWILD
- Flag
- Singapore
- Port of Registry
- Singapore
- Year Built
- 2026
- Delivery
- November / December 2026
- DP System
- Kongsberg DP-2
Dimensions
- LOA
- 78.00 m
- Beam Mid
- 18.60 m
- Depth Mid
- 7.80 m
- Draft Max
- 6.45 m
- Draft Light
- 3.40 m
- Deadweight (Summer)
- Above 4,000 t
Performance
- Max Speed
- 13.5 kn
- Eco Speed
- 10.0 kn
- Deck Area
- Above 800 m²
- Deck Load
- 1,700t with VCG 0.8m above deck (TBC)
- Deck Strength
- 6.5 t/m²
Capacities
- Dry Bulk
- 262.0 m³ (Total 4 tanks)
- Potable Water
- 606.8 m³ (Total 11 tanks)
- DW/BW
- 1,362.2 m³
- FO (incl. CFO)
- 1,055.0 m³
- Cargo/CFO
- 667.2 m³
- Mud/Brine
- 967.8 m³ (Total 9 tanks)
- Methanol
- 204.0 m³
Machinery
- Item 1
- Main Genset: 4 × in-line engine Wartsila 8L20; continuous rating 1,760 kW at 1,200 rpm
- Item 2
- Harbour Genset: 1 × Scania; DI-16 090M; V8; 553 kW at 1,800 rpm
- Item 3
- Emergency Genset: 1 × Cummins; 99 kW
- Item 4
- BESS System: 1 × 1,000 kW (Corvus; Future)
- Item 5
- Propulsion: 2 × Wartsila; Azimuth Thruster; 1,900 kW (AFE Converter, FPP)
- Item 6
- Bow Thruster: 2 × Wartsila; Bow Thruster; 1,000 kW (AFE Converter, FPP)
- Item 7
- Alternators: 4 × Leroy-Somer; LSA52.22 VL85/6p; 1,670 kWe; 690V; 60Hz
Equipment
- Item 1
- Anchor: 2 × AC-14HHP Stockless; 2,640 kg each
- Item 2
- Chain: Port Grade 3, 46mm × 10 shots; Starboard Grade 3, 46mm × 10 shots
- Item 3
- Windlass: 2 × Electro-hydraulic with warping head
- Item 4
- Capstan: 2 × Electro-hydraulic; each 10t pull; 0–15m/min
- Item 5
- Tugger winch: 2 × Electro-hydraulic; each 10t pull; 0–15m/min
- Item 6
- Deck Crane: 1 × Electro-hydraulic; Fixed boom; SWL 3t at (3–12m)
- Item 7
- Accommodation: 60 POB (8 single + 26 twin + 2 twin SPS cabins)
- Item 8
- Navigation: FURUNO GP-170, STD22 NX Gyro, Anschutz Reflecta Magnetic Compass, NX-900, NP100 NX Autopilot, FE-800 Echo Sounder, DS-85 Speed Log, FAR-2018-MARK-2 X-Band Radar, FR-2338S S-Band Radar, VR7000 VDR, FMD-3005 ECDIS, FA-170 AIS
- Item 9
- Facsimile: FURUNO FAX30
Accommodation
- Item 1
- Single Rooms: 8
- Item 2
- Twin Rooms: 26
- Item 3
- Twin Rooms (SPS): 2
- Item 4
- Total: 60 POB
- Item 5
- Cabins provided with Internet, telephone and satellite TV
Delivery Nov/Dec 2026. Singapore Flag.
All details of the vessel are given in good faith but without warranty as to accuracy, and interested parties must satisfy themselves by inspection or other means as to the condition, capacity, and details of the vessel. All particulars are for guidance only and do not constitute a term of any contract and remain subject to verification, availability and changes without notice.
